NEW MEGA Side Imaging+: See the world below like never before with crystal-clear viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail than MEGA Side Imaging Sonar.
NEW MEGA Down Imaging+: Get unprecedented underwater clarity with coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail than MEGA Down Imaging Sonar.
Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.
Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).
LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count

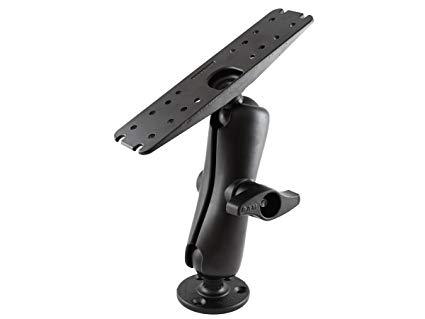

Includes transducer and mounting hardware, power cable, gimbal mounting bracket.

HELIX 8 CHIRP MEGA SI GPS G3N SPECIFICATIONS
Display Size - Diagonal	8" diagonal
Display Pixel Matrix	800H X 480V
Sonar-Standard	Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
Sonar-Optional	50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported	Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported	50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar	1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
CHIRP - Imaging-Frequencies Supported	455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
Depth-Down Imaging	125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side)	800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
Interface	Keypad Control
Memory Card Slot	Dual Micro SD
Power Draw	1 Amp
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	8000 Watts
Power Output RMS	1000 Watts
Screen Snap Shot	Included
Sonar Recording	Included
Mount-Standard	Gimbal
Mount-Standard Size	12.00” W x 7.0” H x 4.13” D
Mount-Optional Size	12.00” W x 6.63” H x 1.32” D
Mount-Optional	In-Dash Mounting Kit
Transducer Included	XM 9 HW MSI T
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Receiver	Internal
GPS Trackplotting	Included
Waypoints, Routes,Tracks/Points	2,750, 45, 50/20,000
360 Imaging Compatibility	Yes
Humminbird Basemap	Included
LakeMaster Compatibility	Yes
Minn Kota i-Pilot Link Compatibility	Yes
Minn Kota Talon Shallow Water Anchor Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum + Compatibility	Yes
Platinum Compatibility	Yes
Radar Compatibility	Yes
5-Port Ethernet Switch Compatibility	Yes
AIS Compatibility	Optional
Heading Sensor GPS Compatibility	Yes
NMEA2000	Optional
Target Separation	2.5"
Upgradable Software	Yes
View Preset Keys	Yes
X-Press Menu System	Yes
Custom Digital Readout	Yes
Custom View Selections	Yes
Temperature	Built In
Temperature Alarm	Yes
Temperature Graph	Yes
